This is a cage placed in a 1978 BMW 320 I for Production Racing in SCCA events

Dash cross brace,       front roof,      Left rear shock support, left side roof,                  pipe thru floor

Right B pillar ,          Right Rear area,  Right front foot box   Right rear with cross bar,   Right side door

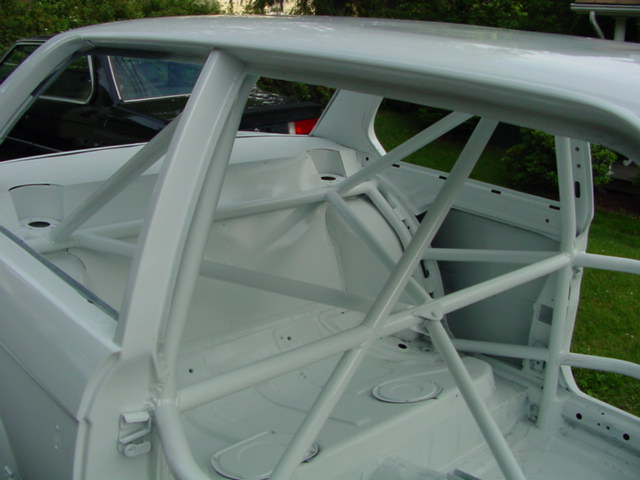

This is the car after the cage was installed and painted notice the Windshield bar on the second picture above.

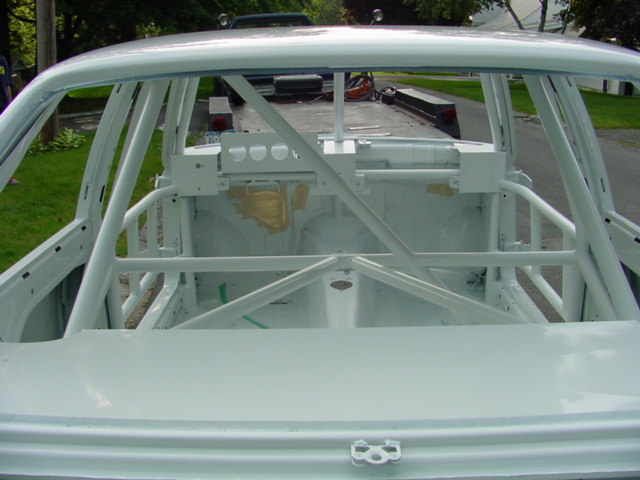

The first picture shows the cage from the rear view the second picture is the main hoop, supports including a removable Petty bar for Driving school application. The third picture shows an extension to the strut tower from the roll cage.

Tying the cage to the body ( legal in Production racing )
